The Ultimate Shield: Why Fluidized Bed Powder Coating is the Heavy-Duty Choice

When standard finishes aren’t enough to withstand harsh industrial environments or brutal Lake Erie winters, metal parts need a stronger line of defense. Fluidized bed powder coating is the go-to solution for applications requiring extreme durability, superior thickness, and flawless coverage.

Whether you are manufacturing heavy industrial equipment in Millcreek or need long-lasting protective finishes for outdoor gear, here is a look at how the fluidized bed process works and why it might be the exact service your project needs.

How the Fluidized Bed Process Works

Unlike traditional electrostatic spray coating, the fluidized bed method relies on a dipping process combined with heat.

1. Preheating: The metal part is heated in an oven to a precise temperature, significantly higher than the melting point of the powder coating.

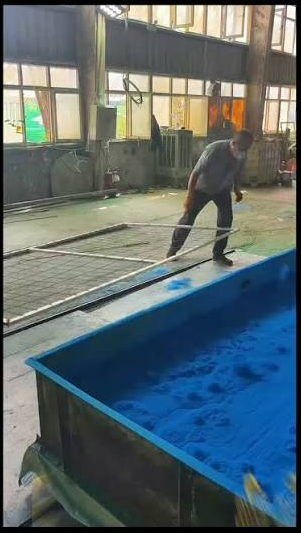

2. The Fluidized Bed: The powder is placed inside a specialized tank. Compressed air is pumped upward through a porous membrane at the bottom, suspending the powder particles in the air so they behave exactly like a boiling liquid.
3. The Dip: The preheated metal part is submerged into this “fluidized” cloud of powder.
4. Melting and Curing: Upon contact with the hot metal, the powder instantly melts and fuses to the surface. The part is then removed and often undergoes a final post-cure heating to ensure a perfectly smooth, continuous finish.

Core Advantages of Fluidized Bed Coating

For heavy-duty applications, this method offers several distinct advantages over standard spray coating:

• Exceptional Thickness: While spray coatings typically max out at a few mils (thousandths of an inch), a fluidized bed can easily apply coatings ranging from 10 to 100+ mils in a single dip.
• Perfect Edge Coverage: Liquid paints and standard sprays often pull away from sharp edges as they cure. The fluidized bed process ensures uniform, thick coverage over every edge, corner, and complex geometry.
• Unmatched Durability: The resulting thermoplastic finish offers incredible resistance to impacts, abrasion, chemicals, and UV exposure. It acts as a thick armor, sealing the metal completely from moisture and corrosion.
• Electrical Insulation: The thick, uniform coating provides excellent dielectric properties, making it highly effective for insulating electrical components.

Ideal Applications

Because it creates such a robust, thick protective layer, fluidized bed powder coating is frequently used for:

• Wire Goods & Baskets: Dishwasher racks, display shelving, and material handling baskets.
• Marine & Outdoor Equipment: Parts constantly exposed to water, salt, and freezing temperatures.
• Industrial Components: Valve bodies, pipe fittings, and heavy machinery housings.
• Electrical Hardware: Busbars, switchgear, and transformers requiring safe insulation.
• Automotive & Transportation: Battery trays, suspension parts, and custom fabrications.

Get Your Parts Protected

At Erie Powder Coating, we understand what it takes to protect metal against heavy wear and corrosive environments. If you have parts that demand a premium, heavy-duty finish, the fluidized bed process delivers results that standard paints simply cannot match.
